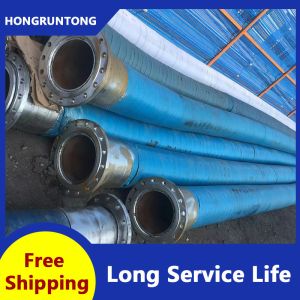

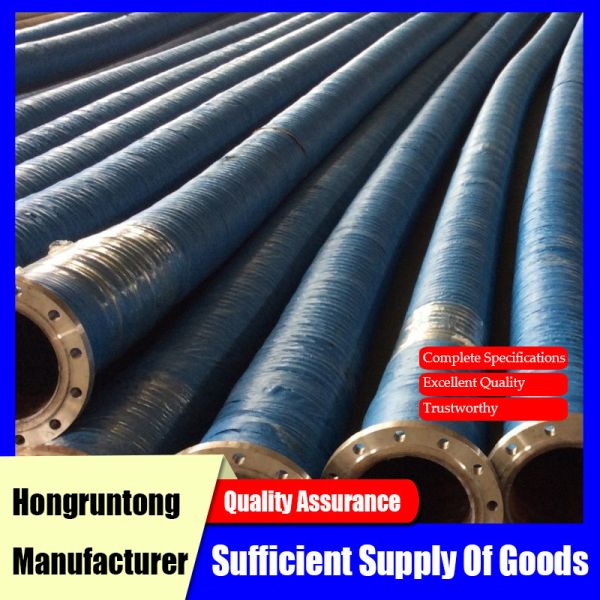

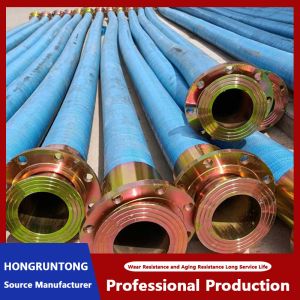

Discharge Hose Heavy Duty Reinforced Design High Flow Capacity
Reliable Pressure Handling
Description
The Hongruntong Mining Hose is purpose-built for extreme mining
environments where high-pressure slurry, abrasive materials, and
chemical exposure are common. Each hose is constructed with
multi-layer synthetic fiber reinforcement and a highly durable
rubber lining, providing exceptional mechanical strength,
flexibility, and chemical resistance. The hoses are designed to
endure demanding mining conditions, including long-distance slurry
transfer, tailings management, and dewatering operations.
Case Study
In 2021, a nickel mine in Indonesia experienced frequent failures
of conventional hoses in their long-distance slurry pipelines. The
mine faced issues with high-volume abrasive slurry, tropical heat,
and high humidity, which caused rapid wear and chemical degradation
of the hose linings. Hongruntong engineered a 14-inch diameter
Mining Hose with quadruple synthetic reinforcement layers,
optimized for high-pressure slurry transport and long-term abrasion
resistance.
The hose featured a specially formulated inner lining resistant to
corrosive and mildly acidic tailings water, as well as an outer
layer capable of withstanding UV radiation and mechanical abrasion
during surface deployment. Over a continuous 18-month operation
period, the hoses performed flawlessly, even under frequent pump
start-stop cycles and pressure surges exceeding 20 bar.
The engineering team reported a 45% reduction in maintenance and
replacement costs, a significant improvement in pipeline uptime,
and enhanced safety for personnel due to the reduced risk of sudden
hose failures. Additionally, the hose demonstrated exceptional
flexibility, allowing for installation along challenging terrain,
including steep inclines, bends around rock formations, and
transitions between underground and surface pipelines. Detailed
monitoring confirmed minimal wall wear, excellent chemical
resistance, and consistent flow rates throughout the operational
period. This project showcased the Hongruntong Mining Hose’s
ability to maintain integrity under the combined stresses of
abrasive material, chemical exposure, and extreme tropical
climates.
Specifications
| Product Name | Mining Hose |
| Brand | Hongruntong Marine |
| Tube Material | Hongruntong Grade A++ Natural Rubber |
| Reinforcement | Synthetic Fabric and Wire Helix |
| Cover | UV, Ozone, and Abrasion-Resistant Synthetic Rubber |
| End Connections | Carbon Steel (Painted, Galvanised, Custom)
Stainless Steel (Ss304, Ss316)
Exotic Alloy |
| Working Pressure | 10-22 Bar |
| Temperature Rating | -40°C to +80°C |
| Safety Factor | 4:1 |
| Application Scenario | Recommended ID (mm) | Wall Thickness (mm) | Working Pressure (Bar) | Temperature Range (°C) |
| Slurry and Tailings Transport | 100–300 | 15–25 | 6–10 | -30 to +80 |
| Mine Dewatering Systems | 50–200 | 10–20 | 4–8 | -10 to +60 |
| Dust Suppression Lines | 25–100 | 5–15 | 4–6 | -10 to +50 |
| Chemical Transfer in Processing | 50–150 | 10–22 | 6–10 | -20 to +90 |
| Model | Inner Diameter (ID) | Outer Diameter (OD) | Working Pressure (MPa) | Burst Pressure (MPa) | Bend Radius (mm) | Standard Length (m) | Liner Thickness (mm) |
|---|
| HM-MH1 | 76 mm (3") | 120–140 mm | 1.0–1.6 | 3.0–4.8 | 600–800 | 10 / 20 | 8–12 |
| HM-MH2 | 100 mm (4") | 150–170 mm | 1.0–2.0 | 3.0–5.0 | 700–900 | 10 / 20 | 8–15 |
| HM-MH3 | 125 mm (5") | 185–210 mm | 1.0–2.0 | 3.0–6.0 | 900–1100 | 10 / 20 | 10–18 |
| HM-MH4 | 150 mm (6") | 230–260 mm | 1.0–2.5 | 3.0–7.5 | 1000–1300 | 10 / 20 | 12–20 |
| HM-MH5 | 200 mm (8") | 300–340 mm | 1.2–2.5 | 4.0–8.0 | 1200–1600 | 10 / 20 | 12–25 |
| HM-MH6 | 250 mm (10") | 360–420 mm | 1.2–3.0 | 4.0–9.0 | 1500–2000 | 10–11.8 | 15–28 |
| HM-MH7 | 300 mm (12") | 420–500 mm | 1.2–3.0 | 4.0–9.0 | 1800–2400 | 10–11.8 | 18–30 |
| HM-MH8 | 350 mm (14") | 500–580 mm | 1.0–2.5 | 3.0–7.5 | 2200–3000 | 10–11.8 | 20–32 |
| HM-MH9 | 400 mm (16") | 560–650 mm | 1.0–2.5 | 3.0–7.5 | 2500–3300 | 10–11.8 | 22–35 |
| HM-MH10 | 500 mm (20") | 680–780 mm | 1.0–2.0 | 3.0–6.0 | 3000–4200 | 10–11.8 | 25–40 |
Features
Quadruple Synthetic Reinforcement Layers
The hose incorporates four layers of high-tensile synthetic fibers
strategically designed to distribute pressure evenly across the
hose wall. This advanced reinforcement structure prevents bulging,
deformation, and rupture under extreme high-pressure conditions.
The multi-layer design also enhances fatigue resistance during
repeated pressure cycles, a common challenge in long-distance
slurry pumping. Laboratory testing demonstrated that hoses with
quadruple reinforcement could sustain over 50,000 pressure cycles
at 20 bar without structural compromise, representing a 60%
improvement over standard double-reinforced hoses.
Optimized Anti Abrasion Inner Lining
The inner lining of the hose utilizes a proprietary rubber compound
with exceptional wear resistance. Designed for highly abrasive
slurries, this lining minimizes particle-induced erosion, ensuring
wall thickness remains consistent over long operational periods.
The material is engineered to handle slurry velocities up to 15
m/s, providing optimal throughput without premature degradation.
This feature is particularly critical in pipelines transporting
tailings, sand, and finely ground ores where abrasion is severe.
Thermal and Chemical Stability
The hose can operate safely in temperatures ranging from -30°C to
75°C, accommodating both underground cold conditions and surface
heat exposure. Its chemical resistance covers a wide pH range from
3 to 11, allowing safe transport of mildly acidic or alkaline
slurries, commonly found in nickel, copper, and gold mining
operations. Extensive chemical immersion testing showed no
significant swelling, cracking, or loss of flexibility after
prolonged exposure, confirming long-term operational reliability.
High Flexibility and Maneuverability
The combination of synthetic reinforcement and engineered rubber
compounds enables the hose to maintain flexibility even at large
diameters and long lengths. The hose can negotiate tight bends,
vertical inclines, and complex routing without kinking or
collapsing. This flexibility allows for safer installations in
underground tunnels, pit slopes, and conveyor integration points.
Field reports indicate a significant reduction in installation
labor and time due to this maneuverability, particularly in
complex, space-constrained mine layouts.
Applications
Long Distance Slurry Pipelines
Ideal for transporting mineral slurries over distances exceeding
several hundred meters, the hose maintains pressure integrity and
consistent flow rates, reducing energy consumption and minimizing
pipeline maintenance.
Tailings Disposal Systems
Designed for transporting abrasive tailings to disposal sites or
treatment ponds, the hose offers high wear resistance and chemical
compatibility, extending operational life and enhancing
environmental safety compliance.
Dewatering and Water Management
Perfect for pit and tunnel dewatering, the hose safely handles
water removal under high-pressure pumping and abrasive sediment
conditions. The chemical resistance also allows handling of process
water containing residual reagents or acids without damage.
Why Choose Hongruntong Marine
Innovative Hose Engineering
Hongruntong leverages over 20 years of research and development in
high-performance hoses for mining and marine applications. Each
hose design integrates advanced synthetic reinforcements, optimized
rubber compounds, and precision manufacturing processes to deliver
superior abrasion resistance, chemical durability, and pressure
handling. Continuous improvements in material science ensure hoses
remain at the forefront of mining technology.
Proven Global Track Record
Our mining hoses have been deployed across diverse geographies,
including Australia, Indonesia, Chile, and Africa. We understand
the unique challenges of different mining environments, from
tropical high-humidity climates to sub-zero underground operations,
ensuring hoses are engineered to meet the exact conditions they
will encounter.
Customizable Solutions for Any Mining Operation
We provide fully customizable hoses tailored to mine-specific
requirements, including diameter, length, wall thickness,
reinforcement layers, and chemical compatibility. This allows
mining engineers to select hoses precisely suited to the
operational parameters, improving efficiency, safety, and long-term
ROI.
Comprehensive Technical Support and Lifecycle Management
Hongruntong offers full lifecycle support, including installation
guidance, preventative maintenance plans, emergency replacements,
and technical consulting. Our team assists clients in optimizing
hose deployment, minimizing downtime, and maximizing operational
efficiency. Additionally, hoses undergo rigorous testing and
quality assurance, including pressure, abrasion, and chemical
resistance assessments, ensuring reliability in every application.
FAQ
Q1: What diameters are available for the Mining Hose?
A: Diameters range from 4 inches to 20 inches, with custom sizes
available upon request.
Q2: Can the hose be used for highly acidic slurries?
A: Yes, it is chemically resistant to slurries with a pH range of
3–11.
Q3: What is the maximum recommended working pressure?
A: The hose can safely handle pressures up to 25 bar, depending on
diameter and reinforcement configuration.
Q4: How does the hose perform in tropical or high-humidity
environments?
A: Outer layer compounds provide UV and humidity resistance,
preventing degradation even in tropical climates.
Q5: Is the hose suitable for underground installation?
A: Yes, its flexibility and multi-layer reinforcement allow safe
and efficient deployment in tunnels, confined spaces, and sharp
bends.
